THÔNG SỐ KỸ THUẬT:

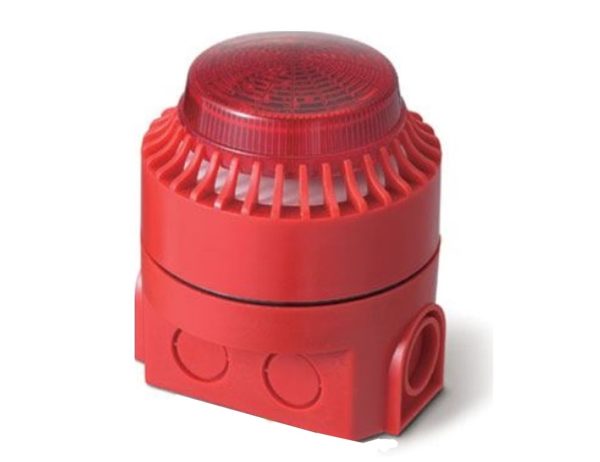

| Model | TBR9-BSR |
| Type | Addressable Electronic Sounder and Beacon (Red LED) |
| Input Source/ code | Zone signal / Binary coding |
| Operating Voltage | 26V DC |
| Standby Current | 850μA |
| Alarm Current | Under 8mA |
| Sound Output | 90 ±4 dB(A) at 1 meter |
| Sounder Output | 2.3~3.4KHz, 1.8Hz (ON 0.05S/OFF 0.5S) |
| LED Flash Rate | 1.3Hz (ON 0.003S/OFF0.7S) |
| Ingress Protection | IP65 |
| Max. number of device connected per loop | 30 pcs per loop *Horing Lih manufactured |
| Ambient Temperature | -20℃ ~ +50℃ |
| Ambient Humidity | 10% ~ 95% |
| Material | Fire-proof plastic |
| Color | Red |
| Dimensions(mm) | 92.5(Dia) x 120.5(H) |
=================================================================
